SPECIFICATIONS

Applicable People: Male

Battery: 17.5Ah Lithium-ion Battery

Battery Capacity: 17.5 Ah

Battery Position: Integrated Battery

Bike Suspension Types: Bidirectional

Brake: E725 Hydraulic Disc Brake

Braking System: V Brake/Disc Brake,Hydraulic Disc Brake (Hydraulic Brake Pad)

Brand Name: YTYIN,CNEBIKE

Charging Time: >3 hours

Charging time: 6h

Derailleur: 11 -speed

Display: Bafang DPC18 Color Display

Fork Material: aluminum

Frame: carbon fiber

Frame Material: aluminum,Carbon Fibre

Gears: 11 Speed

High-concerned chemical: None

Max Speed: >50km/h

Max load: 200 KG

Model Number: CMC1000

Motor Power: 1000w

Motor position: Central Motor

Origin: Mainland China

Place of Origin: Jiangsu, China

Power Supply: Lithium Battery

Product name: 1000W Carbon Fiber Electric Mountain Bike

Range per Power: 31 - 60 km

Rim Material: aluminum

Tire: 27.5*2.8 MAXXIS

Torque: >100 Nm

Type: BMX

Voltage: 48V

Wheel Size: 26",27.5''

Product Description

2024 New Design Emtb Electric Bicycle 1000W Carbon Electric Mountain Bike Frame Full Suspension Ebike

Product Paramenters

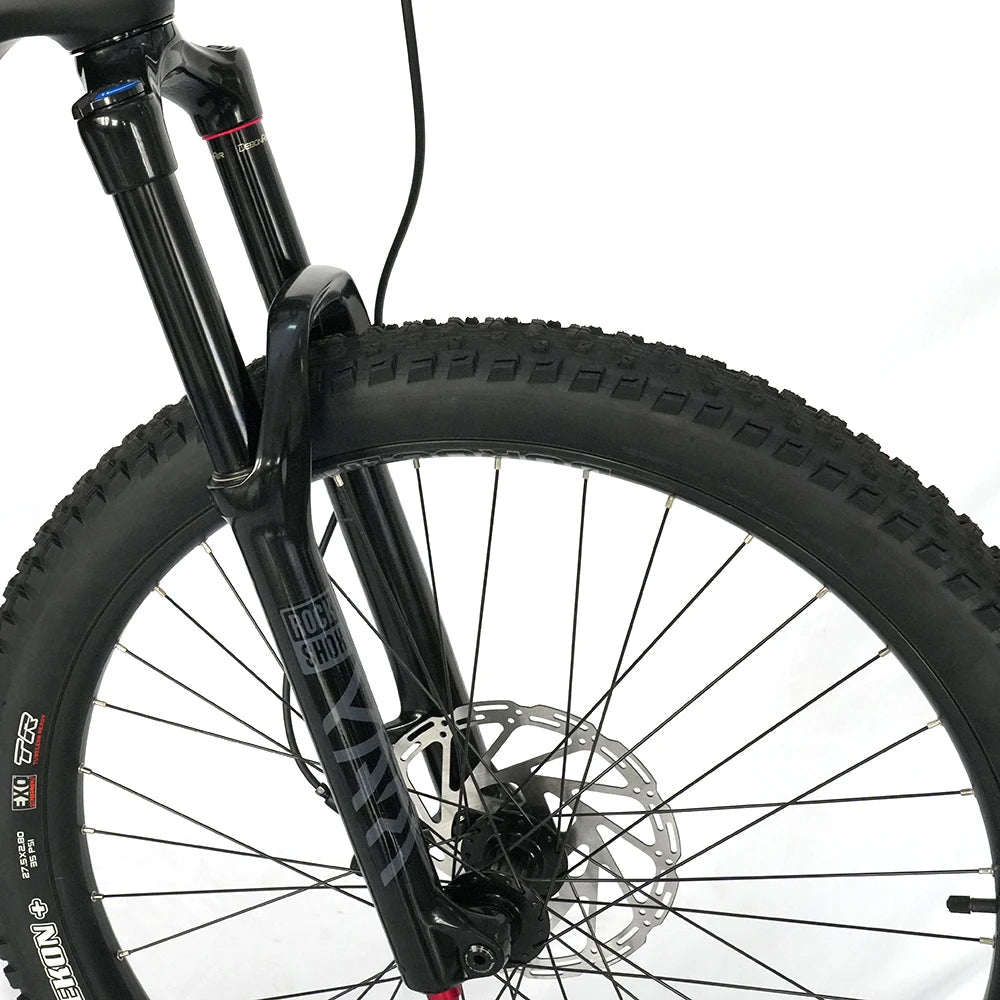

1. Frame: Carbon black 2. Motor: 48V/1000w BAFANG G510 mid drive motor 3. Torque Sensor 4. Battery: 48v 17.5ah lion battery 锛圠G18650锛塡r 5. Charger:48v/3A 100-240v AC smart Dpower 6. Display: BAFANG DP C18 colorful Display 7. Front fork: ROCKSHOX YARI RC front fork, Travel 160mm 8. Rear shocx : ROCKSHOX DELUXE 230×62.5mm rear shock 9. Brake System : E725 tektro hydraulic disc brake with 203MM DISC 10. Shifter & Derailleur:SRAM NX 11-speed 11. Freewheel: SRAM 11-42T 12. Saddle: comfortable sport type 13. Chain: 11s KMC stainless steel 14. Tyre: 27.5" x2.8 MAXXIS Tire

Details Images

G510 Mid Motor

1000W G510 Mid Motor with 160 NM Torque sersor

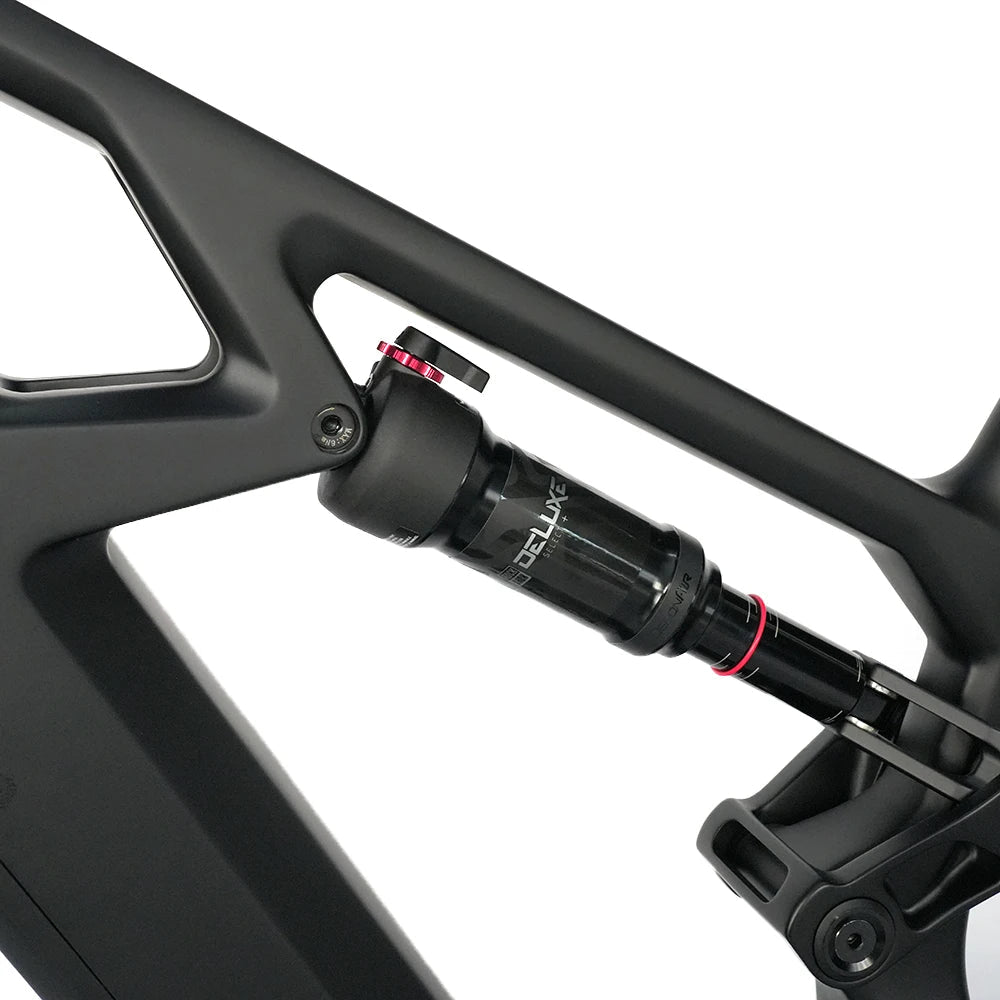

rear suspension

ROCKSHOX DELUXE 230×62.5mm rear shock

Tires

27.5" x2.8 MAXXIS Tire

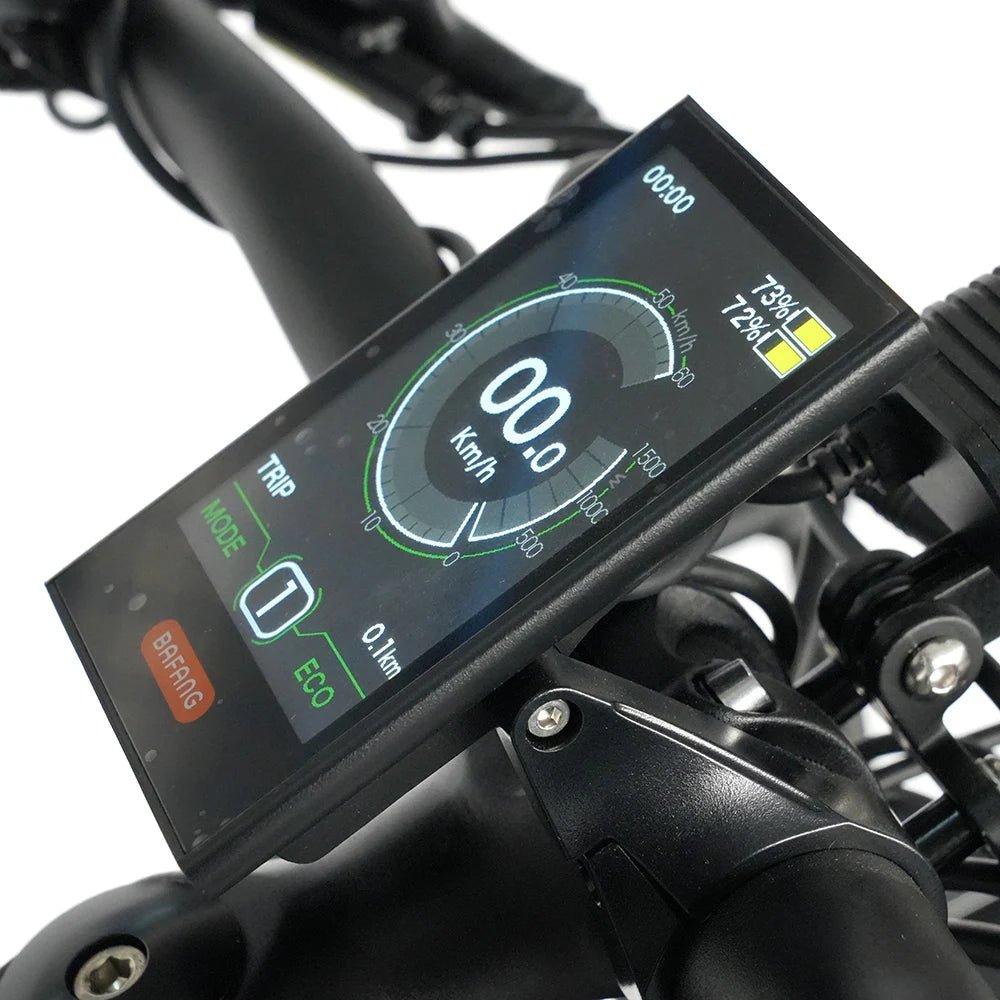

Colorful display

you can set datas by display.

it is included USB charge 5v 500mA

Hydraulic brake system

4 Piston Hydraulic Disc Brakes

Shift sensor

Shift sensor to ensure a smooth riding

PEDALS

High quality PEDALS

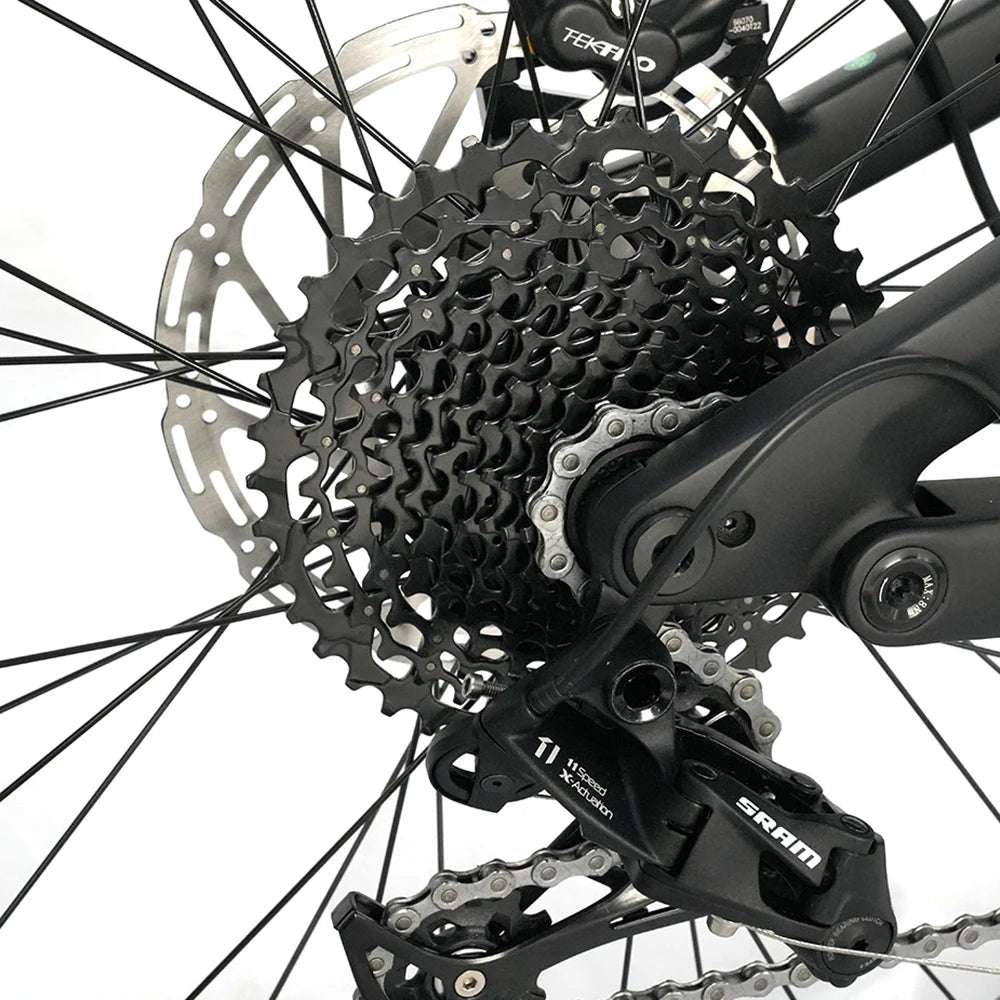

Derailleur

SRAM 11-speed

Battery

17.5AH BATTERY 锛圠G18650锛�

Bike Size

BOOST FRAME
1	Effective Top Tube Length	560 mm	22 inches
2	Seat Tube Length (Classic Bike Size)	480 mm	18.9 inches
3	Reach	480 mm	18.9 inches
4	Stack	600 mm	23.6 inches
5	Chainstay Length	470 mm	18.5 inches
6	Standover Height	700 mm	27.6 inches
7	Head Angle	64 °	-
8	Seat Angle	70 °	-
9	Head Tube Length	120 mm	4.7 inches
10	Fork Length	570 mm	22.4 inches
11	Front Center	790 mm	31.1 inches
12	BB (Bottom Bracket) Drop	40 mm	1.6 inches
13	Fork Offset	40 mm	1.6 inches
14	Wheelbase	1270 mm	50 inches
15	Total Length	2000 mm	78.7 inches
16	Max Seat Height	1065 mm	41.9 inches
17	Min Seat Height	920 mm	36.2 inches
18	Handlebar Height	1160 mm	45.7 inches
19	Weight (Without Battery)	23.1 kg	50.9 lb
